PLX-5200a
PORTABLE MOBILE X-RAY DIGITAL RADIOGRAPHY SYSTEM
PRODUCT SPECIFICATIONS
POWER OUTPUT
25kW
TUBE CURRENT
200mA
Main Inverter Frequency
60kHz
TUBE VOLTAGE
40-125kV
Dual Focus
Small Focus: 0.6, Large Focus: 1.3
DIGITAL DETECTOR
Flat Panel Detec
PRODUCT FEATURES
HIGH DEFINITION IMAGES
High quality portable FPD, outstanding acquisition conversion performance, the sharp clinical image can be guaranteed. It can realize digital radiography of all human body parts like head, limbs, chest, spine lumbar, and so on.
Integrated workstation
Integrated image acquisition system and x-ray generator control, ensure the efficiency of operation. A variety of post-processing algorithms and techniques, while the image quality is greatly improved, the radiation dose is significantly reduced. The operation interface has a variety of functions such as patient management, image collection, processing and observation, and case report. Supports DICOM 3.0 standard protocol and PACS workstation for image transfer.
Super Capacitor
Fast and Accurate Positioning
Equipped with dedicated supercapacitor as the power supply for radiography mode, without direct power supply which is convenient in wards and consultation room. Image collection is more stable and reliable with long-term working due to fast-charging capacity.
There are 4 one-key unlock buttons, one key to unlock a variety of linkage, namely loose or lock, easy to operate. Wide range frame movement, to meet the clinical needs of a variety of positioning.
Large capacity lithium battery pack
Compact machine flexible movement
Electric power assisted, helping move continuously 20Km by a single charge, long-distance endurance is guaranteed.
Column rotation design, wide coverage. Large diameter main wheel, smooth movement, compact and flexible.
Dual Motor Drive
Safety and Anti-Collision Design
Electric power assisted motor drive, double wheel driven, zero radius turning, convenient, flexible to move.
The front of the machine is equipped with automatic anti-collision protection device to ensure the safety of personnel and machine.

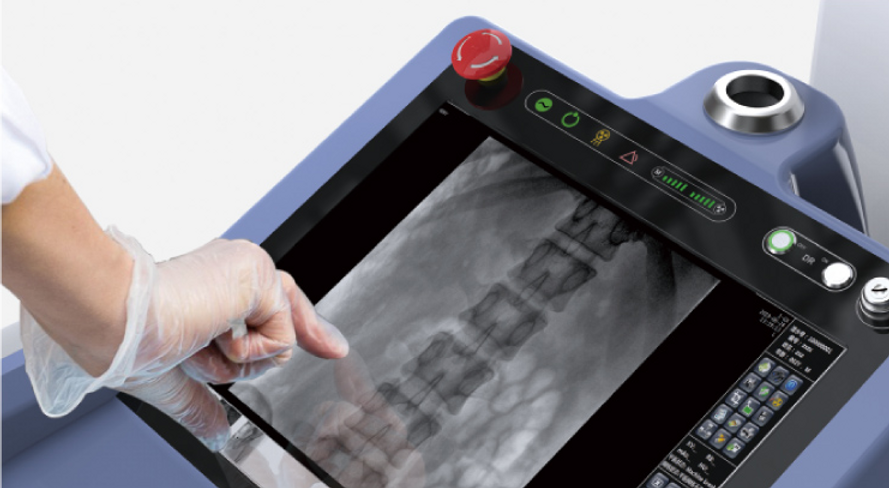

Graphical Control Interface
Double Exposure
Large size and rendering with human graphic LCD touch screen design. Simple but intuitive interacting interface. With automatically adjustable parameters fro adults and children in the aspect of multiple body area, positions, and shapes.
Hand brake for close-range exposure, wireless remote control for long-distance exposure. It is easy to realize compartment operation. Convenient for clinic use.
