Signers SUPiA

SUPiA

COMPUTED RADIOGRAPHY SYSTEM

PRODUCT

Specifications

CASETTE

SUPiA CR Cassette 14 x 17 inches

SUPiA CR Casette 10 x 12 inches

SUPiA Cassette 18 x 24 cm

Grayscale Resolution

Acquisition: 16 bits per pixel

Display: 12 bits per pixel

Throughput

Up to 72 IPs/hr (14 x 117" / 160µm

POWER SUPPLY CONDITIONS

Single Phase 50~60Hz

AC 90~264V

SLOTS

Single Casette Feed

DIMENSIONS

(W x D x H)

436 x 636 x 196mm

SAMPLE IMAGES

Sample Rendered Image rom SUPiA
Sample Rendered Image rom SUPiA

PRODUCT

FEATURES

COMPACT AND LIGHTWEIGHT

The length is just 636mm, so it can fit on any normal desk.

It weighs only 21.5kg (47.4lb)

BARCODE SYSTEM

Automatic cassette size recognition and scanning

High THROUGHPUT

Intuitively able to know the state of scanner

Throughput Specs of SUPiA

DURABLE

  • Extremely simple structure design

  • Cassette sorter protects the internal structure of scanner from dust and particles that can cause damage

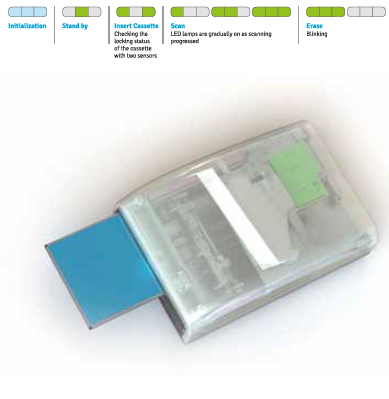

FRONT LED DISPLAY

Intuitively able to know the state of scanner

SUPiA Internal View

Authentic Rigid type among Clinic Comptued Radiography systems

  • No damage or scratches to the image plate during scanning & erasing

  • Scan & Erase without roller

  • No cut-off image in winter or cold conditions

Cassette

STRONG STRUCTURE

Strong enough against external impact

Able to bear up to 150kg of weight on cassette

FEATHERLIGHT

14x17": 2.1kg/ 10x12":"1.3kg/ 18x24cm: 0.67kg

DUSTproof & EASy cleaning

Easy to clean up dust on IPs

Prevent dust from outside

USER Friendly Design

Barcode label

Color Coded: 14 x 17" (Green), 10 x 12" (Blue), 18 x 24cm (Pink)

Barcoded SUPiA Cassette
